Android 3-2_UI 레이아웃 실습 숙제

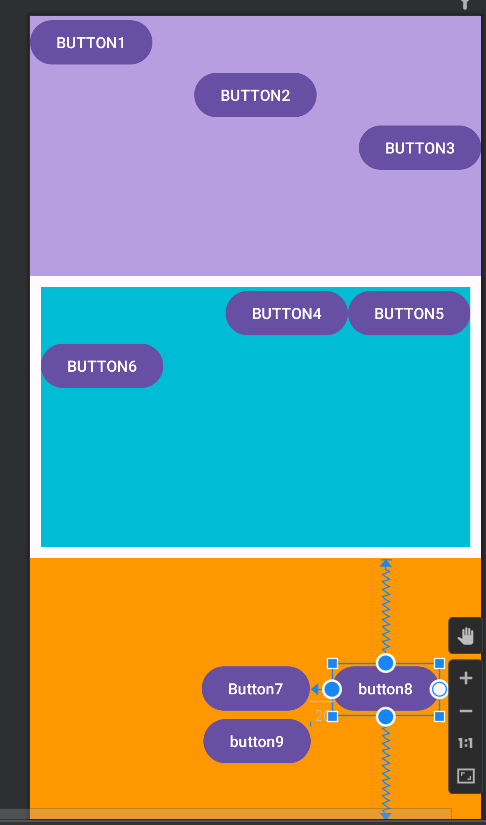

아래 화면을 만들어보기

UI 레이아웃 구성

• LinearLayout내에 3개의 LinearLayout을 추가하고 각각의 weight를 1로 사용
• Linear Layout
  • Button3개를 세로로 배치
  • Layout_gravity를 이용해 위치 조정
• Relative Layout
  • Layout margin : 10dp
  • Button5를 우측 상단에 고정
  • Button4를 Button5 왼쪽에 배치, 오른쪽margin20dp
  • Button6을 Button4 아래로 배치, 왼쪽margin10dp
• Constraint Layout
  • Button7을 레이아웃 중앙에 배치
  • Button8을 Button7 오른쪽 같은 높이에 배치, 왼쪽margin20dp
  • Button9를 Button7 아래로 배치

---

해보기









<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:orientation="vertical">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="0dp"
            android:layout_weight="1"
            android:background="#EBB096DF"
            android:orientation="vertical">

            <Button
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="BUTTON1"
                android:layout_gravity="left" />

            <Button
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="BUTTON2"
                android:layout_gravity="center" />

            <Button
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="BUTTON3"
                android:layout_gravity="right" />

        </LinearLayout>


        <RelativeLayout
            android:layout_width="match_parent"
            android:layout_height="0dp"
            android:layout_weight="1"
            android:background="#00BCD4"
            android:layout_margin="10dp">

            <Button
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="BUTTON4"
                android:id="@+id/b4"
                android:layout_toLeftOf="@id/b5" />

            <Button
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="BUTTON5"
                android:id="@+id/b5"
                android:layout_alignParentRight="true" />

            <Button
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="BUTTON6"
                android:id="@+id/b6"
                android:layout_below="@id/b5" />

        </RelativeLayout>


        <androidx.constraintlayout.widget.ConstraintLayout
            android:layout_width="match_parent"
            android:layout_height="0dp"
            android:layout_weight="1"
            android:background="#FF9800">

            <Button
                android:id="@+id/b7"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="Button7"
                app:layout_constraintBottom_toBottomOf="parent"
                app:layout_constraintEnd_toEndOf="parent"
                app:layout_constraintStart_toStartOf="parent"
                app:layout_constraintTop_toTopOf="parent" />

            <Button
                android:id="@+id/b8"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_marginStart="20dp"
                android:text="button8"
                app:layout_constraintBottom_toBottomOf="parent"
                app:layout_constraintStart_toEndOf="@+id/b7"
                app:layout_constraintTop_toTopOf="parent" />

            <Button
                android:id="@+id/b9"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="button9"
                app:layout_constraintEnd_toEndOf="parent"
                app:layout_constraintHorizontal_bias="0.504"
                app:layout_constraintStart_toStartOf="parent"
                app:layout_constraintTop_toBottomOf="@+id/b7" />


        </androidx.constraintlayout.widget.ConstraintLayout>


    </LinearLayout>


    </androidx.constraintlayout.widget.ConstraintLayout>

















완료오
